Heat Pumps / Central Split Systems
Heating and Cooling
Add a description about this category

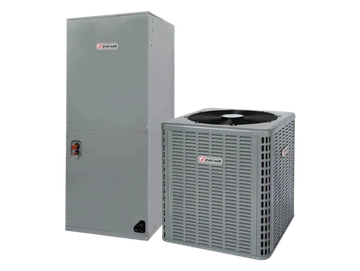

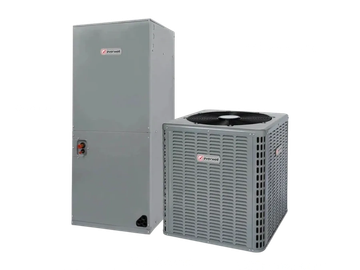

2 Ton/Multi Position
Condenser: CAC2414HA15
Air Handler: AHC2414BA15
Everwell
Multi Position: Upflow, Downflow, or Horizontal
22000 BTU
R454B
14.3 SEER2
208~230V/1Ph/60Hz
Heat Strip: WTM0502BE 5kW
2.5 Ton/Multi Position
Condenser: CAC3014HA15
Air Handler: AHC3614BA15
Everwell
Multi Position: Upflow, Downflow, or Horizontal
28000 BTU
R454B
14.3 SEER2
208~230V/1Ph/60Hz
Heat Strip: 8kW
3 Ton/Multi Position
Condenser: CAC3614HA15
Air Handler: AHC3614BA15
Everwell
Multi Position: Upflow, Downflow, or Horizontal
33000 BTU
R454B
14.3 SEER2
208~230V/1Ph/60Hz
Heat Strip: WTM1002BE 10kW
3.5 Ton/Multi Position
Condenser: CAC4214HA15
Air Handler: AHC4214BA15
Everwell
Multi Position: Upflow, Downflow, or Horizontal
40000 BTU
R454B
14.3 SEER2
208~230V/1Ph/60Hz
Heat Strip: WTM1002BE 10kW
4 Ton/Multi Position
Condenser: CAC4814HA15
Air Handler: AHC6014BA15
Everwell
Multi Position: Upflow, Downflow, or Horizontal
45000 BTU
R454B
14.3 SEER2
208~230V/1Ph/60Hz
Heat Strip: WTM1002BE 10kW
5 Ton/Multi Position
Condenser: CAC6014HA15
Air Handler: AHC6014BA15
Everwell
Multi Position: Upflow, Downflow, or Horizontal
55000 BTU
R454B
14.3 SEER2
208~230V/1Ph/60Hz
Heat Strip: WTM1002BE 10kW
Electrical
Essential components for central AC systems

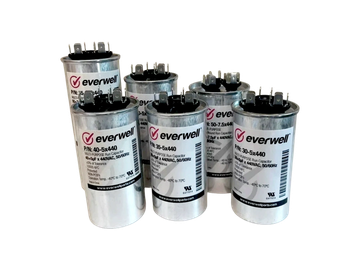

Capacitors
Dual Round Run Capacitor
- 30-5x440, 35-5x440, 40-5x440, 55-5x440
- 30-7.5x440, 35-7.5x440, 40-7.5x440, 45-7.5x440

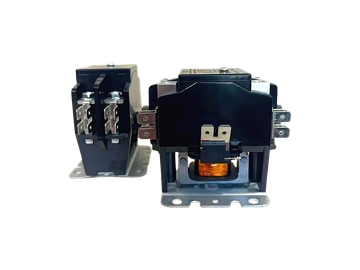

Heavy Duty Definite Purpose Contactor
- EVERWELL DPCAX-240, DPCAX-230
- Universal mounting
- 50/60 cycles
- Compact size
- Field serviceable
- Class B insulation
- High temperature range
- 100,000 hours of operations

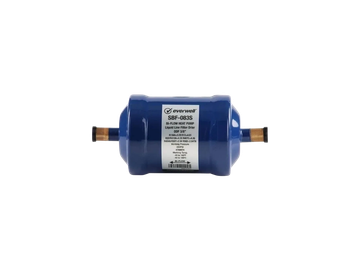

Bi-Flow Heat Pump Filter Drier
- SBF-083S - 3/8" Solder - Everwell
- Designed with internal check valve for dual direction flow and filtration
- Solid copper fittings
- High acid and moisture removal
- Corrosion resistant epoxy powder paint
- Max. working pressure: 680 psi, 4700 KPA

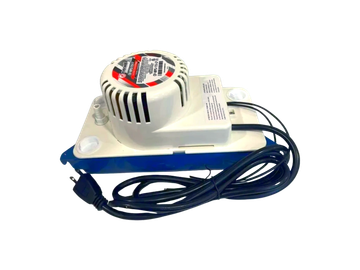

Condensate Pump
CP-MPG-115-LP EVERWELL
- Built-in automatic safety switch
- Compact design
- ABS tank and cover
- Dual stage motor float switch (start-stop)
- Replaceable discharge valve
- Max. water temperature up to 120°F (49°C)

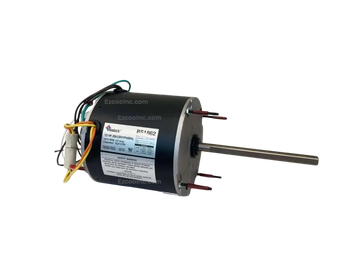

Condenser Fan Motor
RS1862–1/2HP 1075RPM 208-230/1/60 1/2" ROSTOCK
- Double Rotation CW/CCW
- Permanent split capacitor
- Shaft slinger ring included
- All angle mount (totally enclosed)
- Frame 48 (5 5/8″)
- Automatic reset thermal protection
- Shaft of 1/2″, length 5 1/2″.
- Direct drive air-over
- Insulation class B
- 30″ (76.2cm) leads
- Max. working temp.: 140°F (60°C)

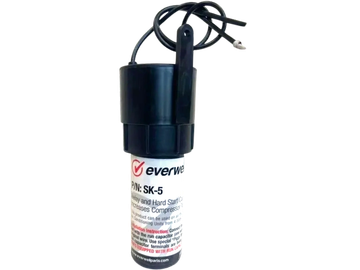

Hard Start Kit for A/C Compressor
- The SK-5 Kit by EVERWELL increases torque up to 300%
- Contains relay and start capacitor for Extra starting torque
- Install Quickly across run Cap terminals
- use on Room AC
- Residential and commercial PSC units and heat pumps
- For all PSC A/C units from 4000 to 120,000 BTU's ( 1/2 through 10 HP)
- for use in 120 to 288 VAC units
- For low voltage and hard starting compressors

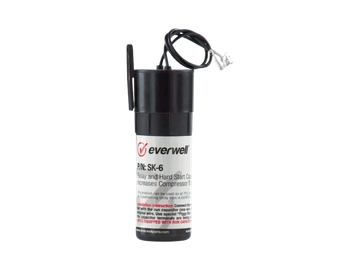

Hard Start Kit for A/C Compressor
- The SK-6 Kit by EVERWELL increases torque up to 500%
- Contains relay and start capacitor for Extra starting torque
- Install Quickly across run Cap terminals
- use on Room AC
- Residential and commercial PSC units and heat pumps
- For all PSC A/C units from 4000 to 120,000 BTU's ( 1/2 through 10 HP)
- for use in 120 to 288 VAC units
- For low voltage and hard starting compressors
